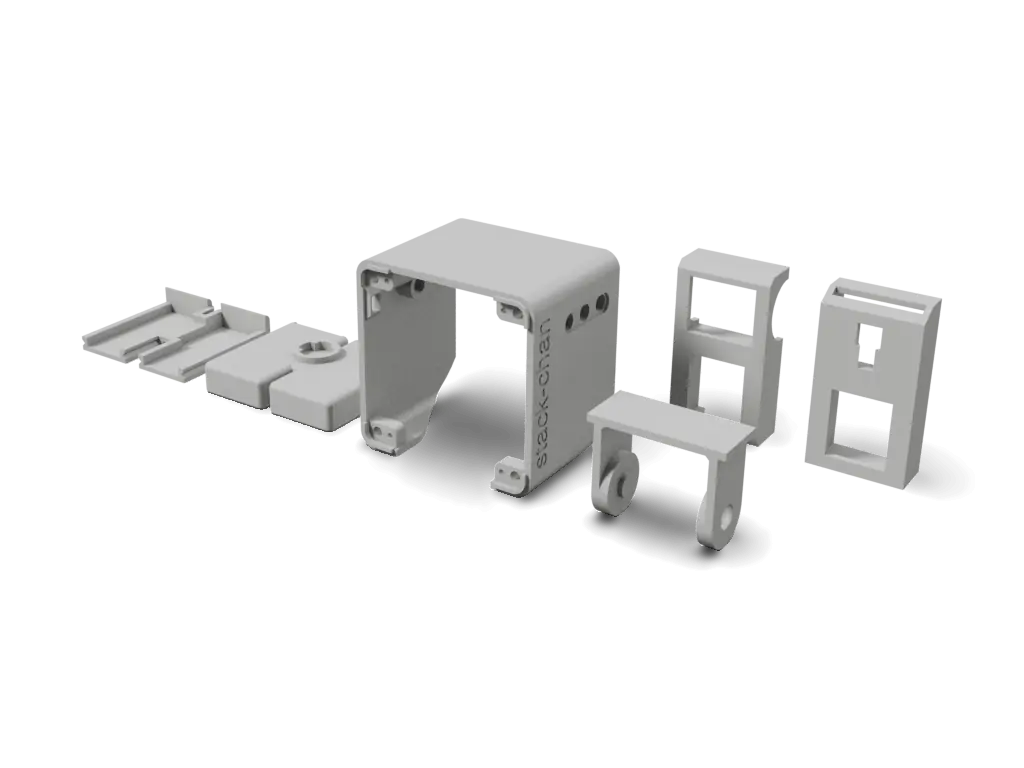

Stack-chan source parts laid out side by side, 3D render from shell.stl (not the assembled robot)
Parts preview: not the assembled robot · shell.stl

Stack-chan

M5Stack-based pan-tilt companion robot with JavaScript firmware and printable cases.

Start the build

What it is

Stack-chan is an open-source, JavaScript-driven "super-kawaii" desktop companion robot built on M5Stack, credited in its README to Shinya Ishikawa and the Stack-chan community. An M5Stack core is the face and controller on top of a two-servo pan-tilt body. The upstream standard configuration is M5Stack's preassembled M5StackChan CoreS3 (K151, two SCS0009 feedback servos per M5Stack's docs); for DIY builds the repo holds case v0 STEP and STL sets for SG90, SCS0009 and RS30X servos, the case v1.0 set for DYNAMIXEL XL330, battery backpacks, community case variants, and the KiCad source of the Stack-chan servo board (PWM or serial servos). The firmware is TypeScript/JavaScript on the Moddable SDK, with MODs, browser tools and a WebAssembly simulator. The README License section distributes the repo's resources under Apache-2.0 (a vendored dock module is MIT); the board BOM is not committed and no DIY build total is published, so the price shown is the M5StackChan shop price. The 3D view lays out the printed parts of the case v1.0 side by side, because upstream publishes no assembly.

Licenses

Hardware
Apache-2.0
Software
Apache-2.0
Docs
Not published

Degrees of freedom

2 DoF pan 1tilt 1

Breakdown source

Pan tilt headDesktop companionsource

Auto-assembled, not yet reviewed

Source record

Source
1.7k stars, last push 2026-09-30
HW license
Apache-2.0
Cost
$99vendor, assembled, preassembled M5StackChan AI Desktop Robot K151 (upstream standard configuration); DIY case builds have no published total
Lifecycle
Active
Engine
v3.1.1
Checked
Model
shell.stl@c44ec74source parts laid out, not the assembled robotrendered 2026-10-02

Maintain Stack-chan? Claim this page to correct it.

Parts and cost

12 rows

Cost to build

$99USDvendor, assembled
  • preassembled M5StackChan AI Desktop Robot K151 (upstream standard configuration); DIY case builds have no published total$99vendor, assembled

In the source currency, as read on 2026-09-30. Not converted, and not checked against current vendor prices: none of these is a Motari-verified checkout total.

Stack-chan parts, as the source lists them. Prices are the source's, not checked against vendors.

Stack-chan bill of materials
PartQtySpecSourceConfidence
M5StackChan AI Desktop Robot (K151)Preassembled upstream standard configuration (alternative to a DIY build); the README says the standard package is enough to get started
1M5Stack CoreS3 pre-installed, two feedback servos (SCS0009 per M5Stack docs)
M5Stack official shop$99.00 on the M5Stack official shop, checked 2026-09-30stack-chan/stack-chan README.md lines 21-28; M5Stack shop product page K151
high
Circuit board (Stack-chan board)Case v1.0 item 1; KiCad sources in schematics/m5-pantilt drive two PWM or two serial servos
1Stack-chan board v1.0
PCB fab of choice (schematics README names JLCPCB as an example)not listed in source BOMstack-chan/stack-chan case/v1/dynamixel.md line 15
high
M5 Stack CoreS3Case v1.0 controller and face display
1M5Stack CoreS3
not named in source listnot listed in source BOMstack-chan/stack-chan case/v1/dynamixel.md line 16
high
XL330Case v1.0 servos: leg servo ID 1 (pan) and neck servo ID 2 (tilt), both set to 1 Mbps
2ROBOTIS DYNAMIXEL XL330
not named in source listnot listed in source BOMstack-chan/stack-chan case/v1/dynamixel.md line 29
high
4cm Communication CableCase v1.0 servo and board cabling
24 cm servo communication cable
not named in source listnot listed in source BOMstack-chan/stack-chan case/v1/dynamixel.md line 28
high
M2x4mm Pan Tapping ScrewsCase v1.0: fix the board and shell
4M2 x 4 mm pan-head tapping screw
not named in source listnot listed in source BOMstack-chan/stack-chan case/v1/dynamixel.md line 24
high
M2.5x6mm Bind Tapping ScrewsCase v1.0: fix the servos; included with the XL330
2M2.5 x 6 mm binding-head tapping screw
included with XL330not listed in source BOMstack-chan/stack-chan case/v1/dynamixel.md line 27
high
3D printed case v1.0 partsPrinted parts from case/v1 as listed in the guide; the backpack count is not stated upstream; use gear_XL330_narrow if the gear hole is too loose
1shell x1, horn x1, gear_XL330 x2, bracket_XL330_f x1, bracket_XL330_b x1, feet_top x1, feet_bottom x1, backpack
3D print yourself or a 3D printing service (JLCPCB 3D printing, DMM.make)not priced in source liststack-chan/stack-chan case/v1/dynamixel.md lines 17-26
high
Two servos (case v0)Case v0 alternative to XL330: RS30X (TTL) or SCS0009 (TTL) serial servos, or SG-90 PWM servos; ID 1 foot side (pan), ID 2 face side (tilt)
2RS30X series TTL, SCS0009 TTL, or SG-90 PWM
Vstone / Switch Science / Akizuki Denshi (links from the project)not listed in source parts liststack-chan/stack-chan case/README.md lines 45-49
high
M5Stack Core Basic/Gray/Go/Fire (case v0)Case v0 controller; the Japanese guide also allows Core2
1M5Stack Core Basic, Gray, Go or Fire
not named in source listnot listed in source parts liststack-chan/stack-chan case/README.md line 43
high
3.7V Battery with PH 2-pin cable (case v0)Tested with 400 mAh and 640 mAh lithium polymer batteries
13.7V LiPo, PH 2-pin connector
Sengoku (links from the project)not listed in source parts liststack-chan/stack-chan case/README.md lines 50-53
high
Screws (case v0)Case v0 screw set as grouped upstream
1M2 4mm x4, M2 8mm x2, optional M3 15mm x2
not named in source listnot listed in source parts liststack-chan/stack-chan case/README.md lines 54-57
high

Rows from the source's own parts list 21

case/v1/dynamixel.md@c44ec74markdown

Source rowQtyPrice and vendorLine
Circuit board
1
vendor not listedno price listed
L15
M5 Stack CoreS3
1
vendor not listedno price listed
L16
Horn
1
vendor not listedno price listed
L17
Shell
1
vendor not listedno price listed
L18
Gear_XL330
2
vendor not listedno price listed
L19
Backpack
vendor not listedno price listed
L21
Bracket_XL330_f
1
vendor not listedno price listed
L22
Bracket_XL330_b
1
vendor not listedno price listed
L23

6 more rows in case/v1/dynamixel.md

case/README.md@c44ec74markdown

Source rowQtyPrice and vendorLine
M5Stack Core Basic/Gray/Go/Fire
vendor not listedno price listed
L43
Stack-chan board
vendor not listedno price listed
L44
Two servos (RS30X, SCS0009 or SG-90)
2
vendor not listedno price listed
L45
3.7V Battery with PH 2-pin cable
vendor not listedno price listed
L50
Screws (case v0)
vendor not listedno price listed
L54

M5Stack official shop, M5StackChan K151html

Source rowQtyPrice and vendorLine
M5StackChan AI Desktop Robot (K151)
1
M5Stack$99.00
L1

README.md@c44ec74markdown

Source rowQtyPrice and vendorLine
Upstream standard configuration: M5StackChan K151
vendor not listedno price listed
L21

How to build

6 steps

Upstream step marks a step taken from the linked guide.

  1. Print the case v1.0 parts

    Print the shell, horn, two gear_XL330 (gear_XL330_narrow if the hole is loose), bracket_XL330_f and _b, feet_top, feet_bottom and a backpack, or order them from a 3D printing service such as JLCPCB or DMM.make; upstream suggests buying a kit if neither is practical.

    Upstream stepgithub.com/stack-chan/stack-chan/blob/c44ec745401dd33914c12b...

  2. Set servo IDs and baud rate

    Connect one XL330 at a time through a U2D2 and SMPS2Dynamixel with a 5V adapter, and use ROBOTIS Dynamixel Wizard 2 to set the leg servo to ID 1 and the neck servo to ID 2, both at 1 Mbps (factory default is ID 1 at 57600).

    Upstream stepgithub.com/stack-chan/stack-chan/blob/c44ec745401dd33914c12b...

  3. Assemble the leg and neck servos

    Press a gear_XL330 onto the ID 1 servo, fit it into feet_top (the notched protrusion is the front), secure it from the back with M2.5x6 mm tapping screws and slide in feet_bottom. Press a gear_XL330 onto the ID 2 servo, secure it with M2.5x6 mm tapping screws and attach the horn.

    Upstream stepgithub.com/stack-chan/stack-chan/blob/c44ec745401dd33914c12b...

  4. Assemble the body

    Attach the servo cables, join the upper and lower servos with bracket_XL330_f, secure them with bracket_XL330_b, and connect the board to the servos.

    Upstream stepgithub.com/stack-chan/stack-chan/blob/c44ec745401dd33914c12b...

  5. Close the shell and stack the M5Stack

    Slide the horn into the shell, fix the board and shell with four M2x4 mm pan tapping screws, and insert the M5Stack CoreS3.

    Upstream stepgithub.com/stack-chan/stack-chan/blob/c44ec745401dd33914c12b...

  6. Flash the firmware

    Without a Moddable SDK environment, flash Stack-chan from a web browser: install the M5Stack USB driver on a PC that supports the Web Serial API, connect the M5Stack, open the web flasher, choose the M5Stack type (M5Stack, M5Stack Core2, M5Stack CoreS3 or M5StackChan CoreS3) and install; it takes 2 to 3 minutes. The factory default settings use the SCS0009 servo, so change the servo type from the browser settings for other servos.

    Upstream stepgithub.com/stack-chan/stack-chan/blob/c44ec745401dd33914c12b...
Print timenot published
Assembly timenot published

Wiring, power and firmware are safety-relevant and shown for reference only. Check them against the source before building.

How reproducible

How confidently this design builds into a working robot, from what its sources publish: each criterion's points, quality tier and evidence.

80/100Strong source coverage, unverified

Engine v3.1.1 at c44ec74, 1 item reviewed by hand

  • The engine found no joint model or stated figure to count degrees of freedom from.
  • The engine could not tell what kind of robot this is from its sources.
How this score is computed

Files and sim

14 files

Files stay in the upstream repository under their own licenses; these links open them there. The 3D model on this page is Motari's conversion of the file named under Simulation.

Simulation

Robot description files a simulator or CAD tool can load, linked at the commit they were found.

No URDF, MJCF, SDF, USD or Onshape model has been found in the sources.

The 3D specimen on this page is converted from case/v1/shell.stl at c44ec74, with the parts laid out side by side because the source has no assembly.

Builds

0 reviewed

No reviewed builds of Stack-chan yet.

A build log records the evidence (photos, a video, your repository), what the build cost, how long it took and what you changed. Each one is checked by Motari (until a maintainer claims this page) before it shows here, and reviewed builds count toward the reproducibility score.

Sources

Where the facts come from

Last push to stack-chan/stack-chan: 2026-09-30 (checked 2026-10-02)

Related links

How this page was made

Assembled from public sources on 2026-09-30, not yet reviewed by the maintainer. Each figure links to where it is stated; a value the sources do not state reads "not published". Last source review: 2026-09-30 stack-chan/stack-chan@c44ec74 README, LICENSE, tree.
