Berkeley Humanoid

Mid-scale Berkeley humanoid research platform for learning-based locomotion (paper only; hardware designs not released).

Paper only. Published as research. No hardware design files are released, so it cannot be built from source.

Lifecycle source

  • No hardware design files released
  • biped robot12 DoF
  • $9,955source total
Reproducibility0/100Sparse source coverage, unverifiedCADBOMWIREFWBUILDLICREPHow it is computed

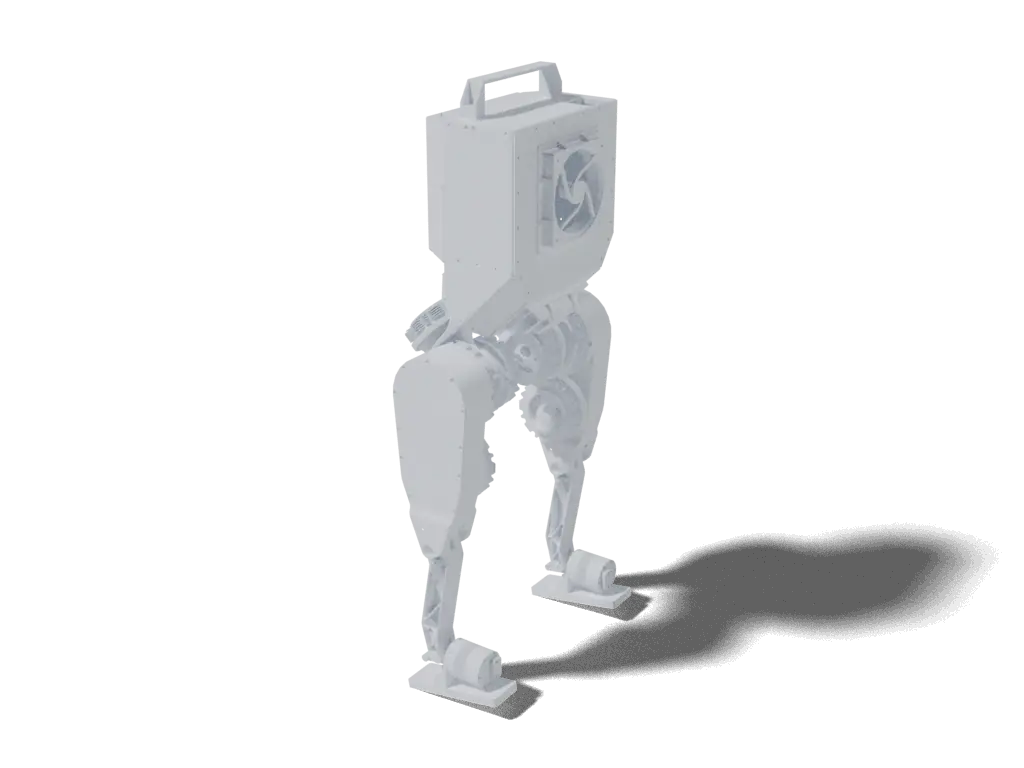

Berkeley Humanoid research 12-DoF biped robot, 3D render from robot.urdf
main assembly 3D · robot.urdf

About Berkeley Humanoid

Berkeley Humanoid is a 16 kg fully electric mid-scale humanoid research platform for learning-based locomotion control. The ICRA 2025 paper reports two 6-DoF legs, custom planetary-gear actuators, hollow-shaft cable routing, EtherCAT motor-driver and IMU communication, an onboard Intel i7-1255U computer, two battery packs, and a small-quantity hardware cost table totaling $9,955 without arms. The public Isaac Lab training repository contains simulation and policy code, while a separate BSD-licensed robot-description repository provides the URDF and STL meshes for the locomotion-focused version. No hardware CAD, actuator or electronics designs are released; only the training code and a URDF/STL description are public.

Licenses

Hardware
No hardware design files releasedthe URDF/STL description README states BSD-3-Clause but has no LICENSE file
Software
BSD-3-Clause
Docs
Not published

Degrees of freedom

12 DoF legs 12

Breakdown source

Bipedsource

How to build Berkeley Humanoid

5 steps

Steps marked Motari summary condense the linked source; follow the source for exact instructions.

  1. Build the actuators

    Build the 5013, 8513, 8518 and 10413 custom planetary actuators described in the paper, including hollow-shaft cable routing where used.

    Motari summaryarxiv.org/abs/2407.21781

  2. Machine or order the structure

    Fabricate the torso and leg structure using the paper's 7075/6061 aluminum and tool-steel gearbox/linkage assumptions.

    Motari summaryarxiv.org/abs/2407.21781

  3. Assemble the legs and torso

    Assemble the two 6-DoF legs and torso, then use the public URDF/STL description repository to validate link and joint layout.

    Motari summaryarxiv.org/abs/2407.21781

  4. Integrate power and compute

    The paper names the onboard computer (Intel i7-1255U), two DJI TB50 batteries, an IMU and an EtherCAT architecture; no wiring harness guide or electronics designs are published.

    Motari summaryarxiv.org/abs/2407.21781

  5. Deploy the RL policy

    Use the Isaac Lab training repository for Velocity-Rough-Berkeley-Humanoid tasks, then validate carefully before hardware deployment.

    Motari summaryarxiv.org/abs/2407.21781
Print timenot published
Assembly timenot published

Wiring, power and firmware are safety-relevant and shown for reference only. Check them against the source before building.

Berkeley Humanoid bill of materials

4 rows

Cost to build

$9,955USDsource total
  • small-quantity production cost of torso and two 6-DoF legs, no arms$9,955source total

In the source currency, as read on 2026-09-30. Not converted, and not checked against current vendor prices: none of these is a Motari-verified checkout total.

Berkeley Humanoid parts, as the source lists them. Prices are the source's, not checked against vendors.

Berkeley Humanoid bill of materials
PartQtySpecSourceConfidence
Custom actuator settwo 6-DoF legs, no arms
122x 5013, 6x 8513, 2x 8518, 2x 10413; 9:1 planetary gear ratio; peak torques 9.7 / 45.3 / 62.6 / 81.1 Nm
self-build$6,894 subtotalBerkeley Humanoid ICRA 2025 paper Table II and Table III
high
Torso, leg structure and mechanical hardwaresmall-quantity production
17075/6061 aluminum structure, tool-steel gearbox/linkage materials, torso module and two leg modules
self-machine / fabrication$2,358 subtotalBerkeley Humanoid ICRA 2025 paper Table III and reliability/low-cost design text
high
Onboard compute and battery setcommercially sourced for performance and safety
1Onboard computer (Intel i7-1255U) and two DJI TB50 batteries
commercial suppliers$653 subtotalBerkeley Humanoid ICRA 2025 paper Table III
high
IMU and EtherCAT control architectureIMU cost table row plus paper-described EtherCAT motor-driver/IMU network
1cellphone-level IMU with interface board, custom EtherCAT slaves for motor drivers and IMU, onboard EtherCAT master at 1-4 kHz
self-build / electronics suppliers$50 IMU subtotal; custom EtherCAT driver cost not separately itemizedBerkeley Humanoid ICRA 2025 paper system overview and Table III
high

Rows from the source's own parts list 4

ICRA2025_Berkeley_Humanoid.pdfpdf

Source rowQtyPrice and vendorLine
Berkeley Humanoid identity and source repository
berkeley-humanoid.comgithub.comno price listed
L2
Robot architecture, compute, power and EtherCAT electronics
two 6-DoF legs; one onboard PC; one IMU; two battery packs
hybrid-robotics.berkeley.educomponent costs grouped in Table III
L184
Custom actuator set
2x 5013; 6x 8513; 2x 8518; 2x 10413
hybrid-robotics.berkeley.edu$6,894 table subtotal
L190
Small-quantity production cost table
one assembled locomotion-focused robot without arms
hybrid-robotics.berkeley.edu$9,955 table total
L241

Berkeley Humanoid source files

6 files

Files stay in the upstream repository under their own licenses; these links open them there. The 3D model on this page is Motari's conversion of the file named under Simulation.

Berkeley Humanoid in simulation

Robot description files a simulator or CAD tool can load, linked at the commit they were found.

The 3D specimen on this page is converted from urdf/robot.urdf at d0d13d3.

Builds of Berkeley Humanoid

0 reviewed

No reviewed builds of Berkeley Humanoid yet.

A build log records the evidence (photos, a video, your repository), what the build cost, how long it took and what you changed. Each one is checked by Motari (until a maintainer claims this page) before it shows here, and reviewed builds count toward the reproducibility score.

Sources and provenance

Sources

Last push to HybridRobotics/isaac_berkeley_humanoid: 2024-10-12 (checked 2026-10-01)

How this page was made

Assembled from public sources on 2026-06-08, not yet reviewed by the maintainer. Each figure links to where it is stated; a value the sources do not state reads "not published". Last source review: paper table + source repos.
